Madix Gondola Shelving

Madix Gondola Shelving

The Gondola is also known as a Double Sided shelving unit or an Island shelving unit as it is designed to be placed in the more center portion of a store.  The Gondola can also be configured to divide a store into departments.

What is the difference between a Wall Section and a Wall End?

Madix Gondola Section

Madix Gondola Section

To create a gondola aisle as pictured in the images on the top of this page you will use the Gondola Section pieces below to configure your aisle length as the sections are available in either 3 or 4 foot sections and your will need an end to complete your aisle of Gondola

A Gondola Section purchased in new condition includes 2 lower shelves, 1 upright, 1 upright cover, 2 base shoes, 2 hardboard backs, 2 kick-plates, 2 base shoe cover, 1 upper spanner, 1 center spanner, and 1 lower spanner.

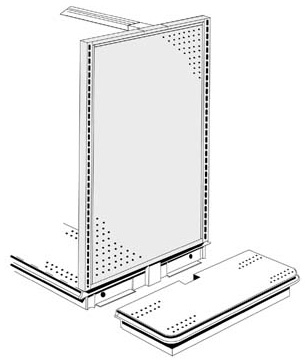

Madix Gondola End

Madix Gondola End

A Wall End is used to complete a Gondola Aisle.  For example a 16' Wall Aisle will consist of 4 Gondola Sections and 1 Wall End to complete the Aisle.

A Gondola End includes 1 upright, 2 base shoes, 2 base shoe covers, and 1 upright cover.


Madix End Cap

Madix End Cap

The best and most affordable configutation for a Madix End Cap is with the use of a Madix Wall Section utilizing a double back configuration.

The most popular double back configuration is a pegboard back in the front of the unit and a solid back in the back of the End Cap unit.


Madix Upper Shelves

Madix Upper Shelves

Adjustable Shelves sit flat or at an up-slope or a down-slope.

Available in a standard widths of 3' and 4' wide plus a 24" and a 30 width by special order.

Standard stocking depths are 12" deep to 24" deep. 8", 26", 28" and 30" are available by special order.


Madix Shelving Dividers

Madix Shelving Dividers

Madix Shelf Fences

Are typlically locked to a upper or lower shelf in the front or rear postion of an upper or base shelf.

Madix Dividers

Are positioned on a upper or base shelf in any postion from front to back.



Madix Gondola Heights

Madix Gondola Heights


36 Inches
42 Inches
48 Inches
54 Inches
60 Inches
66 Inches
70 Inches
72 Inches
78 Inches
84 Inches
90 Inches
96 Inches



Madix Gondola Depths

Madix Gondola Depths

12 Inches
14 Inches
16 Inches
18 Inches
20 Inches
22 Inches
24 Inches
26 Inches
28 Inches
30 Inches

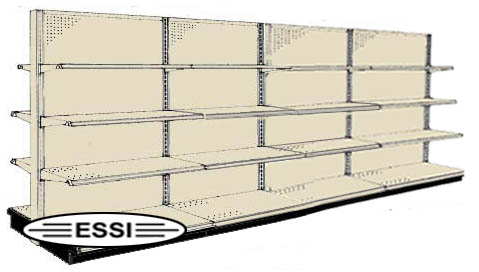

Gondola Double Sided or Island Shelving

A Gondola Section includes one Basic Upright with Cap, two Base Shelves, two Kick-plates, two Back Panels and one Top, Center, and Lower Spanner. If the Gondola is 78" tall or taller, the section would also include one Splicer Spanner for two piece backs.

Gondola Island shelving height starting at 36 inches with a maximum height of 96 inches, a deck base starting at 12 inches wide and a maximum width of 30 inches per Gondola side.

To see Gondola Island store shelving, please visit your local Ralph's Super Market, Do-it Center, Staples or Food for Less.  Most major store are outfitted with Madix store fixtures for a reason.

Gondola Island store shelving will work with most any product line such as: Pet Supplies, Electronic Stores, Meat Market, Butcher Shop, Hardware store, Convenience Store, Office Supply, Auto Parts store, Book Stores, Music Stores, Specialty Stores, Bait and Tackle Stores, Computer Stores,  and Paint Supply Stores.
