Regular duty and heavy
duty pallet rack systems for all warehouse applications large and small.

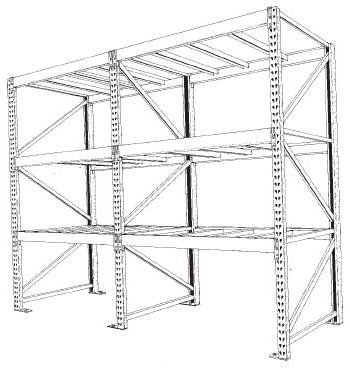

As the image shows above a
pallet rack system of one or more pallet racks that contain two or more
uprights to create what is known as a pallet rack system. A pallet rack
system aisle can be as long as need by adding pallet rack uprights and
beams provided your warehouse has adequate space available. browse this
website for all of the necessary components to create you new pallet
rack system or call 800 619 9566 with your measurements and specs and we
will accurately quote you on your pallet rack system needs. |
Madix Pallet
Racking System Decks and Beams
Request a Quote
|
| Light, regular and heavy
duty beam configurations available in 36" 991.44 cm), 48" (121.92
cm),, 60" (152.40 cm), 84" (213.36) 96" 243.84 cm), 108" (274.32),
120" (304.80 cm), 132" (335.28) and 144" (365.76 cm). Decking
available in unfinished 2" 95.08 cm) dimensional lumber, high
density particle board, or wire grid. |
| - A variety
of finishes and colors available |
- 2" 95.08) frame
slotting on center spacing |
- Deck load capacities up to 10,000 pounds on Heavy Duty Pallet
Racking.
- Manufactured from heavy gauge high-tensile strength steel. |
Rack Heights &
Widths
|
|
Regular duty heights up to 144" (365.76 cm) and Heavy Duty heights
up to 240" (609.60 cm). |
|
|
Heavy pallet racking
solution when substantial weights or handling equipment precludes the
use of wide span.
The Pallet Rack Wall Mount Bracket,
available in depths of 6", 8", 10" and 12", provides consistent spacing
from frame to wall. Hardware pack includes bolts to secure the bracket
to the frame.
This bracket is not recommended for use when
local codes require seismic calculations.
Pallet Rack Leveling Shims
Available in 10 packs consisting of five 12
gauge and five 16 gauge shims for use in leveling pallet rack systems.
Request a Quote |
 |
|
`Pallet racking integral
locking beams and angle floor anchors maintain stability and reduce the
chances of possible disengagement. |
|
|
|
 |
All Pallet Rack frames feature welded
footplates, 2" on center beam adjustment, size availability to 48"
wide and 192" high. Sahara or Blue-Gray are standard colors. Frame
size should be chosen to allow a minimum pallet overhang of 2"
front and 2" rear.
The Pallet Rack load capacity per
frame is 26,000 LB. To preclude overturning, the frame depth x 6
cannot exceed the height of the topmost loaded beam pair, unless
all the frames are properly anchored or braced externally. |
|
Madix Pallet Rack
Regular Duty Decks
Unfinished 2"
dimensional lumber provides high load capacity. Use with ‘-2’ style
beams only. Order by frame depth. |
Madix Pallet Rack
Regular Duty Decks
Economical
5/8" high density particle board for lighter loads or to prevent
merchandise from falling. Not recommended where heavy pallets “scrape”
the surface. Sealed decks have baked-on polymer wax finish to seal
surface. |
 |
 |
 |
 |
|
How to figure pallet rack pricing. Lets
figure you want an aisle of pallet racking 32' long X 8' High X 48" Deep
to fit a normal sized pallet with regular duty pallet racking. You will
need 5 96' high pallet rack upright frames costing $99 each costing
$495, next you will need 8 8' pallet rack beams costing $33 each costing
$264, the entire section described above would cost $495 + $264 = $759,
next you might want to consider some pallet rack shims and wall mount
brackets. For an exact quote call 800 619 9566.
|
Pallet Rack
Upright Frames
|
 |
Height |
Depth |
Regular Duty |
Heavy Duty |
|
72" |
24" |
$86 |
$93 |
|
30" |
$88 |
$95 |
| 36" |
$89 |
$96 |
|
42" |
$91 |
$98 |
| 48" |
$92 |
$99 |
|
84" |
24" |
$89 |
$97 |
| 30" |
$91 |
$99 |
|
36" |
$93 |
$100 |
| 42" |
$94 |
$102 |
| |
48" |
$96 |
$103 |
| |
96" |
24" |
$92 |
$102 |
| |
30" |
$94 |
$104 |
| |
36" |
$96 |
$105 |
| |
42" |
$97 |
$107 |
| |
48" |
$99 |
$108 |
| |
108" |
24" |
$95 |
$106 |
| |
30" |
$97 |
$108 |
| |
36" |
$99 |
$109 |
| |
42" |
$100 |
$111 |
| |
48" |
$102 |
$112 |
|
|
120" |
24" |
$104 |
$116 |
|
30" |
$106 |
$118 |
| 36" |
$109 |
$121 |
|
42" |
$111 |
$123 |
| 48" |
$113 |
$125 |
|
132" |
24" |
$107 |
$120 |
| 30" |
$110 |
$123 |
|
36" |
$112 |
$125 |
| 42" |
$114 |
$127 |
|
48" |
$116 |
$129 |
| |
144" |
24" |
$111 |
$126 |
| |
30" |
$113 |
$128 |
| |
36" |
$115 |
$130 |
| |
42" |
$118 |
$132 |
| |
48" |
$119 |
$134 |
|
|
|
168" |
36" |
N/A |
$151 |
| 42" |
N/A |
$154 |
|
48" |
N/A |
$156 |
|
|
|
192" |
36" |
N/A |
$162 |
|
42" |
N/A |
$164 |
| 48" |
N/A |
$166 |
|
Pallet Rack Beams
& Supports
Pallet Rack Beams are available in
three heights for differing load capacities and feature choice of
step depths to accommodate either 5/8" particle board decks or 2"
dimensional lumber decking.
Beams are slotted in the step to accept
the correct number of deck supports under decking.
 |
|
Pallet Rack Beams |
|
Beam Length |
Beam
Height |
Price |
|
36" |
3 1/2" |
$23 |
|
5" |
$25 |
|
6" |
$27 |
|
48" |
3 1/2" |
$23 |
|
5" |
$25 |
|
6" |
$28 |
|
60" |
3 1/2" |
$25 |
|
5" |
$28 |
|
6" |
$31 |
|
72" |
3 1/2" |
$28 |
|
5" |
$31 |
|
6" |
$34 |
|
84" |
3 1/2" |
$30 |
|
5" |
$34 |
|
6" |
$41 |
|
96" |
3 1/2" |
$33 |
|
5" |
$38 |
|
6" |
$41 |
|
108" |
6" |
$45 |
|
120" |
6" |
$48 |
|
132" |
6" |
$50 |
|
144" |
6" |
$55 |
|
|
|
Deck Supports are formed heavy gauge
steel with tabs which fit into beam slots, providing support for
regular duty decking or to tie beams together to prevent rotation of
beams where heavy duty decking is used. |
|
24" |
$7.40 |
36" |
$8.55 |
|
30" |
$7.95 |
42" |
$10.80 |
| |
48" |
$12.15 |
|

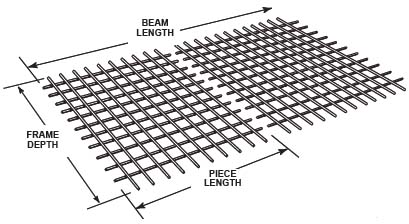

Pallet Rack Wire Grid Decks
|
Frame Depth |
Frame Length |
Cost |
|
24" X |
24" |
$23.00 |
|
36" |
$27.00 |
|
48" |
$41.00 |
|
30" X |
24" |
$26.00 |
|
36" |
$30.00 |
|
48" |
$35.00 |
|
36" X |
24" |
$28.00 |
|
36" |
$33.00 |
|
48" |
$39.00 |
|
42" X |
24" |
$30.00 |
|
36" |
$36.00 |
|
48" |
$42.00 |
|
48" X |
24" |
$32.00 |
|
36" |
$39.00 |
|
48" |
$47.00 |
|
