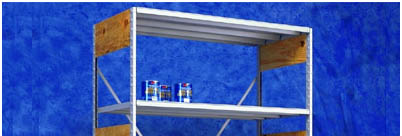

Uprights for Madix Steel Storage Shelving are available
in depths of 12" to 30" in 6" increments with heights
of 48" to 120" in 12" increments.
Heavy gauge Upright is constructed of 16 gauge painted
steel Upright channel and unfinished plywood front to rear ties.
The exclusive slot design resists shipping and handling damage,
ensures positive shelf fit and ease of installation.
Hang Rod Assembly
Basic Upright Clip
Anchor Plate
Adjustable Spanner
|

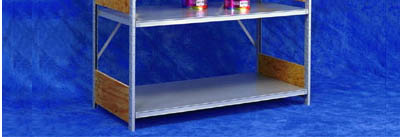

Shelves for Madix Steel Storage Shelving are available
in depths of 12" to 30" in 6" increments with widths
of 36" to 18".
Steel Storage Shelving Shelves all steel
shelves feature an exclusive projected tab design which drops into
Upright slotting for ease of installation and removal. Standard
finishes are Blue-Gray or Sahara. 500 lb. load capacity.

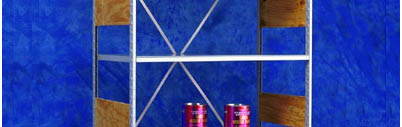

Steel Storage Shelves requires cross bracing for stability. Cross
Braces are required on the first and last sections of runs and on
every fourth section between. Back to back runs can share braces
if Uprights are connected.
Galvanized cross braces are factory assembled and may not be
painted. Determine order quantity. Includes mounting hardware.
|
